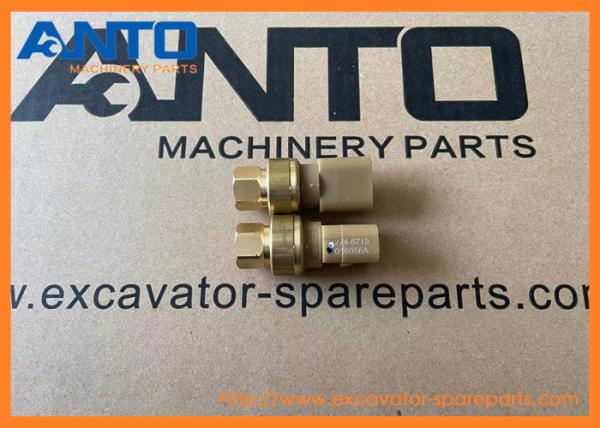

• 2746719 274-6719 Pressure Sensor Excavator Electric Parts For 324D 324D FM 324D FM LL

• Specification

Application	C A T Excavator Electric Parts
Name	Pressure Sensor
Parts No	2746719 274-6719
Model	324D 324D FM 324D FM LL 324D L 324D LN 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 330D 330D FM 330D L 330D MH 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 349E 349E L 349E L VG 349F L 365C 365C L 365C L MH 374D L 374F L 385C 385C FS 385C L 385C L MH 390D 390D L 390F L 568 FM LL M325D L MH M325D MH
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

ARTICULATED TRUCK 725 725C 730 730C 735 735B 740 740B
ASPHALT PAVER AP-1055D AP-755 BG-2455D BG-260D
COLD PLANER PM-200 PM-201
EJECTOR TRUCK 730 730C 740 740B
EXCAVATOR 324D 324D FM 324D FM LL 324D L 324D LN 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 330D 330D FM 330D L 330D MH 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 349E 349E L 349E L VG 349F L 365C 365C L 365C L MH 374D L 374F L 385C 385C FS 385C L 385C L MH 390D 390D L 390F L 568 FM LL M325D L MH M325D MH

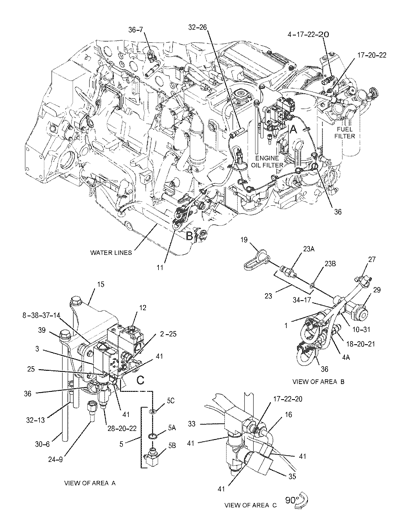

• Catalog parts list​

Pos.	Part No	Qty	Parts name	Comments
1	183-4760 C	[1]	SENSOR GP-PRESSURE (JACKET WATER PRESSURE)
2	264-0564	[1]	CONNECTION GP-TEST
3	264-1420	[1]	SWITCH-TEMPERATURE (HIGH WATER TEMP, SHUTDOWN)
4	274-6719	[1]	SENSOR GP-PRESSURE (FUEL PRESSURE)
4A.	274-6719	[1]	SENSOR GP-PRESSURE (OIL PRESSURE)
5	143-6123	[1]	ELBOW AS
5A.	281-5959	[1]	RING-RETAINING
5B.	451-0371	[1]	ADAPTER-ELBOW
5C.	4J-9535	[1]	SEAL-O-RING
6	5P-5421	[2]	BOLT (1/2-13X11.5-IN)
7	318-1181 Y	[1]	SENSOR GP-SPEED (MAGNETIC)
8	350-2030	[4]	MOUNT
9	377-0264	[1]	THERMOWELL
10	380-7362	[1]	ADAPTER-TEE
11	380-7363 Y	[1]	HARNESS AS-SENSOR
12	383-6237	[1]	SWITCH AS-PRESSURE (LOW OIL PRESSURE, SHUTDOWN)
	9T-4057	[1]	SEAL-O-RING
	295-4155 M	[2]	BOLT-SOCKET HEAD (M5X0.8X35-MM)
13	385-9125	[1]	THERMOWELL
14	420-4381	[1]	BRACKET
15	420-4382	[1]	BRACKET
16	420-9237 I	[1]	HOSE AS
17	437-8955	[4]	VALVE (ISOLATION)
18	439-4479	[1]	VALVE (ISOLATION)
19	157-0670 C	[1]	CAP-DUST
20	214-7566	[5]	SEAL-O-RING
21	214-7567	[1]	SEAL-O-RING
22	214-7568	[5]	SEAL-O-RING
23	217-9060 C	[1]	VALVE AS-FLUID SAMPLING
23A.	154-9023	[1]	VALVE-SAMPLING
23B.	3J-7354	[1]	SEAL-O-RING
24	228-7100	[1]	SEAL-O-RING
25	281-0791 M	[4]	BOLT-SOCKET HEAD (M5X0.8X40-MM)
26	293-9266	[1]	THERMOWELL
27	316-9351	[1]	MOUNTING-CABLE TIE
28	369-6869	[1]	ADAPTER-TEE
29	3D-2824	[1]	SEAL-O-RING
30	5P-8245	[2]	WASHER-HARD (13.5X25.5X3-MM THK)
31	6V-3250	[1]	SEAL-O-RING
32	6V-6609	[2]	SEAL-O-RING
33	6V-8076	[1]	ELBOW
34	6V-9027	[1]	SEAL-O-RING
35	7J-4026	[1]	ELBOW
36	7K-1181	[13]	STRAP-CABLE
37	8T-4205	[4]	WASHER-HARD (7.2X14.5X2-MM THK)
38	8T-9364 C	[4]	BOLT (1/4-20X0.625-IN)
39	9R-7882	[1]	SPACER (14X25X7-MM THK)
41	237-3860 B		TAPE (ANTI-SPLASH, 50-MM WIDE)
	5P-8937 B		COMPOUND-JOINT (THERMAL)
	B		USE AS REQUIRED
	C		CHANGE FROM PREVIOUS TYPE
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

​

• More sensor parts supplied to C A T machine

1573182 SENSOR AS-PRESSURE

312C, 312C L, 314C, 315B L, 315C, 317B LN, 318B, 318C, 320C, 320C FM, 321B, 322C, 322C FM, 325C, 325C FM, 330C, 330C FM, 330C L, 330C MH, 365B, 385B, 5090B

2382227 SENSOR AS-FUEL LEVEL

305.5, 306, 307B, 307C, 311C, 320C, 320D LRR, 320D RR, 325C, 345B II

1636700 SENSOR GP-FUEL LEVEL

1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 312C, 312C L, 312D, 315C, 315D L, 318C, 319C, 319D, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D L, 320D LN, 321C, 321D LCR, 322C, 322C F...

2218859 SENSOR AS-PRESSURE

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 313D2, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC,...

2905825 SENSOR GP-PRESSURE

924G, 924GZ, 924H, 924HZ, 928H, 928HZ, 930G, AP-600D, AP-655D, AP1000E, AP1055E, AP555E, BG1000E, BG1055E, BG500E, CW-34, IT28G, M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318...

3669312 SENSOR AS-PRESSURE

311D LRR, 311F LRR, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L, 324D ...

4343436 SENSOR AS-PRESSURE

311D LRR, 311F LRR, 312D, 312D L, 312D2, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 321D LCR, 323D L, 323D LN, 32...

• Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
