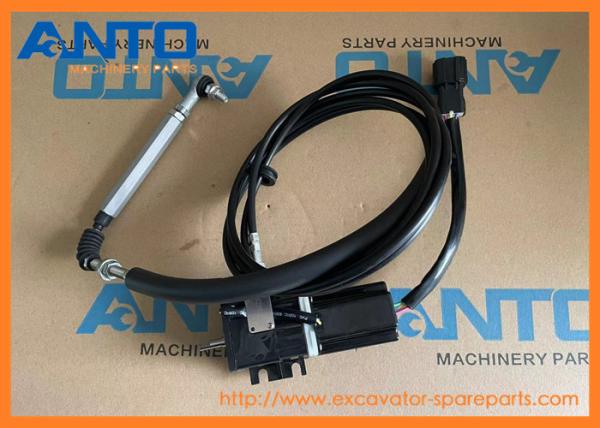

21W-43-41323 21W4341323 Motor Assy Support For KOMATSU Excavators PC78MR PC78UU

• 21W-43-41323 21W4341323 Motor Assy Support For KOMATSU Excavators PC78MR PC78UU

• ​Specification

Category	KOMATSU excavators electric parts
Name	Motor Assy
Parts No	21W-43-41323 21W4341323
Machine Model	PC78MR PC78UU
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

EXCAVATORS PC78MR PC78UU Komatsu

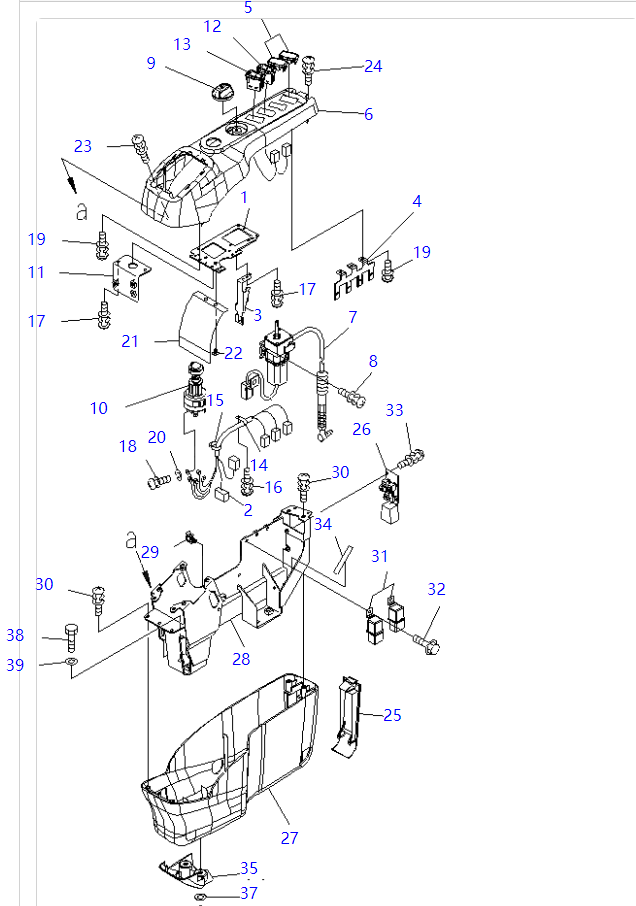

• Catalog parts list​

Pos.	Part No	Qty	Parts name	Comments
1	22U-43-23111	[1]	PLATE Komatsu	0.16 kg.
			["SN: 1257-UP"] analogs:["22U4323110"]
2	21W-06-41531	[1]	WIRING HARNESS Komatsu China
			["SN: 1001-UP"] analogs:["21W0641530"]
3	21W-43-41380	[1]	BRACKET Komatsu China
			["SN: 1001-UP"]
4	22U-43-23130	[1]	STAY Komatsu	0.06 kg.
			["SN: 1001-UP"]
5	22U-06-22320	[2]	COVER Komatsu	0.01 kg.
			["SN: 1001-UP"]
6	22U-43-23140	[1]	COVER Komatsu	0.4 kg.
			["SN: 1001-UP"]
7	21W-43-41323	[1]	MOTOR ASS'Y Komatsu China
			["SN: 1257-UP"]
8	01023-60616	[3]	SCREW Komatsu	0.007 kg.
			["SN: 1001-UP"]
9	22U-06-22470	[1]	KNOB Komatsu	0.001 kg.
			["SN: 1001-UP"]
10	08086-20000	[1]	SWITCH Komatsu OEM	0.35 kg.
			["SN: 1001-UP"] analogs:["20Y0624680", "22B0611910", "0808610000", "885081070", "0808510000", "0808600000", "20Y0624681", "2010621510"]
11	21W-43-41390	[1]	BRACKET Komatsu China
			["SN: 1001-UP"]
12	22U-06-22190	[1]	SWITCH,BUZZER Komatsu OEM	0.02 kg.
			["SN: 1001-UP"]
13	22U-06-22390	[1]	SWITCH,LIGHT Komatsu OEM	0.03 kg.
			["SN: 1001-UP"] analogs:["20Y0649890"]
14	20Y-06-23920	[1]	CLAMP Komatsu	0.01 kg.
			["SN: 1001-UP"]
15	08034-10414	[1]	BAND Komatsu	0.001 kg.
			["SN: 1257-UP"] analogs:["0803400414"]
16	01023-60410	[1]	SCREW Komatsu	0.003 kg.
			["SN: 1001-UP"]
17	01023-60512	[6]	SCREW Komatsu	0.004 kg.
			["SN: 1001-UP"] analogs:["0102310512"]
18	01023-10508	[5]	SCREW Komatsu	0.005 kg.
			["SN: 1001-UP"]
19	01023-10512	[6]	SCREW Komatsu	0.004 kg.
			["SN: 1001-UP"] analogs:["0102360512"]
20	01601-20513	[5]	WASHER,SPRING Komatsu	0.34 kg.
			["SN: 1001-UP"]
21	22U-43-23251	[1]	SHEET Komatsu China
			["SN: 1257-UP"]
22	22U-43-23290	[2]	CLIP Komatsu China
			["SN: 1257-UP"]
23	01023-60620	[2]	SCREW Komatsu	0.008 kg.
			["SN: 1001-UP"] analogs:["0102370620"]
24	01023-70514	[2]	SCREW Komatsu	0.004 kg.
			["SN: 1001-UP"]
25	22U-43-23210	[1]	COVER Komatsu	0.4 kg.
			["SN: 1001-UP"]
26	21W-06-41540	[1]	SWITCH ASS'Y Komatsu	0.19 kg.
			["SN: 1001-UP"]
27	22U-43-23230	[1]	COVER Komatsu	0.97 kg.
			["SN: 1001-UP"]
28	21W-43-41520	[1]	FRAME Komatsu China
			["SN: 1257-UP"]
29	08059-00310	[1]	CLIP Komatsu China
			["SN: 1257-UP"]
31	569-06-61960	[2]	RELAY Komatsu OEM	0.037 kg.
			["SN: 1001-UP"]
32	01435-00612	[2]	BOLT Komatsu	0.006 kg.
			["SN: 1001-UP"]
34	21W-54-44340	[2]	SEAL Komatsu China
			["SN: 1257-UP"]
35	22U-43-23711	[1]	COVER Komatsu	0.06 kg.
			["SN: 1001-UP"]
36	01023-10614	[2]	SCREW Komatsu	0.005 kg.
			["SN: 1001-UP"]
37	01643-30623	[2]	WASHER Komatsu	0.002 kg.
			["SN: 1001-UP"] analogs:["0164370623"]
38	01010-D1030	[4]	BOLT Komatsu	0.03 kg.
			["SN: 1001-UP"]
39	01643-71032	[4]	WASHER Komatsu	0.054 kg.
			["SN: 1001-UP"] analogs:["0164331032", "802150510", "0164331030", "0164381032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002"]

​

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
