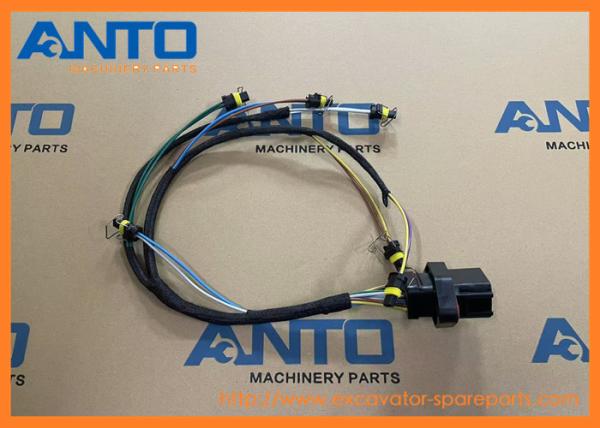

| Application | C A T Excavator Electric Parts |
| Name | Harness |
| Parts No | 546-2154 5462154 |
| Model | C9 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
C A T Generator Set C9
- More harness parts supplied to C A T machine
| 5367945 HARNESS AS-WIRING |
| Caterpillar |
| |
| 5336308 HARNESS AS-PUMP |
| Caterpillar |
| |
| 5286670 HARNESS AS-CONTROL |
| Caterpillar |
| |
| 5558169 HARNESS AS-SENSOR |
| Caterpillar |
| |
| 5531569 HARNESS AS-CHASSIS |
| Caterpillar |
| |
| 5531568 HARNESS AS-CAB |
| Caterpillar |
| |
| 5531567 HARNESS AS-CAB |
| Caterpillar |
| |
| 5506558 HARNESS AS-SWITCH |
| Caterpillar |
| |
| 5494417 HARNESS AS-SOLENOID |
| Caterpillar |

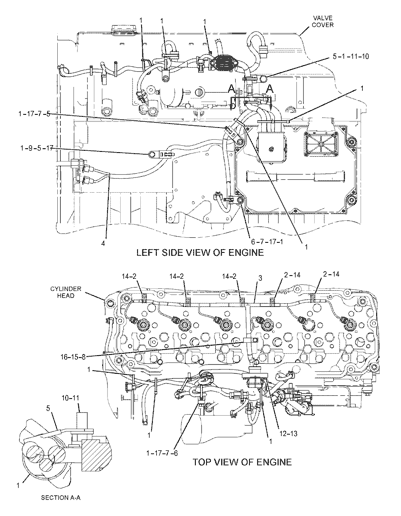

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [16] | STRAP-CABLE | |
| 2 | 439-4571 | [5] | CLIP (LOOP) | |
| 3 | 546-2154 CY | [1] | HARNESS AS-CONTROL | |
| 4 | 300-6790 Y | [1] | HARNESS AS-CONTROL | |
| 5 | 4P-7581 | [4] | CLIP (LADDER) | |
| 6 | 4P-8134 | [2] | CLIP (LADDER) | |
| 7 | 5P-7970 M | [3] | NUT (M8X1.25-THD) | |
| 8 | 6V-4369 | [1] | CLIP | |
| 9 | 6V-5217 M | [1] | BOLT (M8X1.25X20-MM) | |
| 10 | 6V-5839 | [2] | WASHER (11X21X2.5-MM THK) | |
| 11 | 6V-6317 M | [2] | BOLT (M10X1.5X20-MM) | |
| 12 | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 13 | 8T-0328 | [2] | WASHER-HARD (5.5X10X1-MM THK) | |
| 14 | 440-0881 M | [5] | BOLT-SOCKET HEAD (M8X1.25-THD) | |
| 15 | 8T-4205 | [1] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 16 | 8T-5451 M | [1] | BOLT (M6X1X12-MM) | |
| 17 | 9M-1974 | [4] | WASHER-HARD (8.8X16X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
