| Application | C A T excavator engine parts |

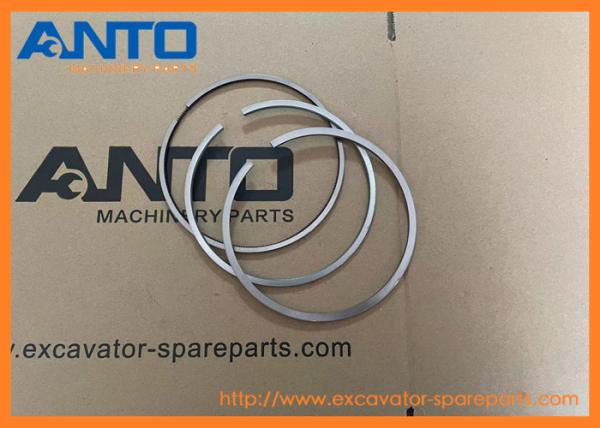

| Name | Piston Ring |
| Parts No | 2W6091 2W-6091 |
| Model | 120G 12G 12H 12H ES 12H NA 130G 140G 140H 140H ES 140H NA 143H 14G 160G 160H 160H ES 160H NA 163H NA |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
ENGINE - MACHINE 3304
GEN SET ENGINE 3306
INDUSTRIAL ENGINE 3304 3306
MARINE ENGINE 3304 3304B
MOTOR GRADER 120G 12G 12H 12H ES 12H NA 130G 140G 140H 140H ES 140H NA 143H 14G 160G 160H 160H ES 160H NA 163H NA
- More ring parts supplied to C A T machine
| 2G8233 RING |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, ... |
| |
| 8D8622 RING INNER HOUSING TO OUTER HOUSING |
| 120G |
| |
| 6G6273 RING-SEAL |
| 14G, 14H, 14H NA |
| |
| 2192435 RING-WEAR |
| 14G, 14H, 14H NA |
| |
| 9W7038 RING-SNAP |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H,... |
| |
| 6Y1115 RING-HALF |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H,... |
| |
| 8E5734 RING-SEAL EXTENSION |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H,... |
| |
| 9W9905 RING-LOCK |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H,... |
| |
| 8E5736 RING-SEAL EXTENSION |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H,... |
| |
| 2184406 RING-WEAR |
| 12H, 12H ES, 12H NA, 12K, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA |
| |
| 1011983 RING-BACKUP |
| 120H, 120H ES, 120H NA, 120K, 12H, 12H ES, 12H NA, 12K, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 143H, 14H, 14H NA, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA, 16H, 16H NA, 24H |
| |
| 8D2878 RING |
| 14G |
| |
| 7E6047 RING-PISTON |
| 120G, 12G, 12H, 12H ES, 12H NA, 130G, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA, 1673C, 235, 235B, 330, 330 FM L, 330 L, 3304, 3304B, 3306, 3306B, 330 |

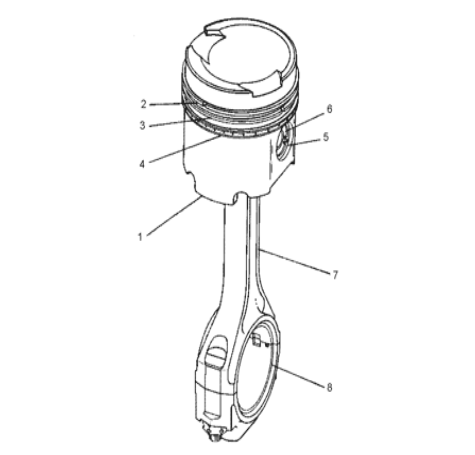

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 129-0359 | [1] | BODY AS-PISTON (REQUIRES 3MM OIL RING) | |
| 2 | 9S-3029 | [1] | RING-PISTON (TOP) | |
| 3 | 5S-6750 | [1] | RING-PISTON (INTERMEDIATE) | |
| 4 | 7E-6047 | [1] | RING-PISTON (OIL)(3MM THICK) | |
| 5 | 1S-9543 | [2] | RETAINER-PIN | |
| 6 | 7N-9805 | [1] | PIN-PISTON | |
| 7 | 8N-1721 | [1] | ROD AS-CONNECTING | |
| | 8N-1849 | [1] | BEARING-CONNECTING ROD | |
| | 1P-9956 | [2] | BOLT-CONNECTING ROD | |
| | 5S-6348 | [2] | NUT (1/2-20-THD) | |
| 8 | 4W-5739 | [1] | BEARING-CONNECTING ROD (STANDARD) | |
| | 8N-8221 AB | | BEARING-CONNECTING ROD (0.254-MM US) | |
| | 8N-8222 AB | | BEARING-CONNECTING ROD (0.508-MM US) | |
| | 8N-8223 AB | | BEARING-CONNECTING ROD (0.762-MM US) | |
| | 2W-6091 AJ | [1] | RING GP-PISTON (REPLACEMENT FOR 129-0359 ONLY) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | INCLUDES A COMPLETE SET OF RINGS FOR ONE PISTON |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
