| Application | C A T excavator engine parts |
| Name | V-belt Set |
| Parts No | 9L-6130 9L6130 |
| Model | 3208 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
INDUSTRIAL ENGINE 3208
TRACK-TYPE TRACTOR D9R
TRUCK ENGINE 1150 3208
- More v parts supplied to C A T machine
| 1N3743 V-BELT |
| 3208, 416C, 416D, 420D, 424D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D, 815B, 950B, 953B, 953C, 963, 980G II, 980H, 986H, CB-434D, CB-534D, CB-564D, CD-54, CS-54, D3G, D4G, D5G, E110B, E12... |
| |
| 9L1553 V-BELT |
| 3208, 637D, 65E, 75, 75C, 75D, 928G, 955L, AD30, AD45B, AD55, CS-531D, CS-533D, CS-563D, CS-573D, CS-583D, D6D, IT28G, R1600, R1600G, R1700 II, R1700G, RT100, RT50 |
| |
| 1P4334 V-BELT |
| 14E, 307E, 308E, 308E CR, 308E SR, 308E2 CR, 3208, 414E, 416E, 422E, 428E, 928G, 938G, 950G, 962G, 966C, E200B, IT12B, IT28G, IT38G, IT62G |
| |
| 9L4013 V-BELT SET |
| 3208, 3508, 3512, 3516, 789, D11N, G3512, G3516 |
| |
| 4N8580 V-BELT SET |
| 3208, CS-551, PS-500 |
| |
| 9L0895 V-BELT SET |
| 1140, 1145, 1673, 1673B, 1673C, 3054, 3054B, 3054C, 3054E, 3160, 3208, CP-433C, CS-431C, CS-563C, CS-573C, CS-583C |
| |
| 4N7610 V-BELT |
| 3208, 950G, 962G, D4D, D4E, D5M, D6M, IT62G |
| |
| 2P7333 V-BELT |
| 3208, 992, D10R, D7R II, D8K, D9R, PR-1000 |
| |
| 9N1330 V-BELT SET |
| 3208 |
| |
| 1152460 V-BELT SET |
| D9R |

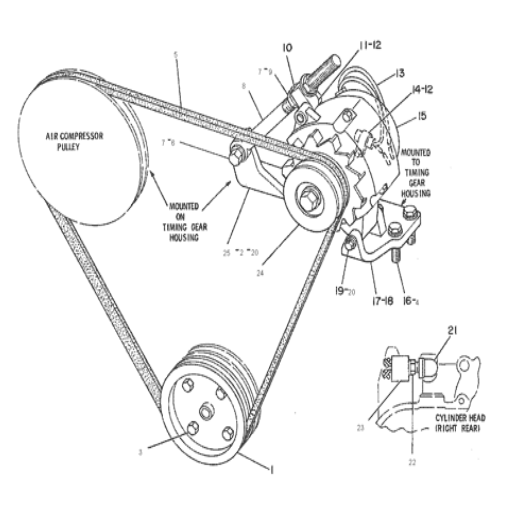

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 9N-5012 | [1] | PULLEY-AUXILIARY DRIVE | |
| 2 | 0S-1594 | [2] | BOLT (3/8-16X1-IN) | |
| 3 | 2B-2695 | [4] | BOLT (5/16-18X0.875-IN) | |
| 4 | 4S-9191 | [4] | WASHER (12X22.5X5-MM THK) | |
| 5 | 9L-6130 | [1] | V-BELT SET (INCLUDES 2 BELTS) | |
| 6 | 1A-1460 | [1] | BOLT (1/2-13X2-IN) | |
| | 1D-4719 | [1] | NUT-FULL (1/2-13-THD) | |
| 7 | 2M-0849 | [4] | WASHER-HARD (13.5X25.5X5-MM THK) | |
| 8 | 6L-5874 | [1] | ROD-PULLEY ADJUSTMENT | |
| 9 | 1B-4205 | [2] | NUT (1/2-20-THD) | |
| 10 | 9N-2166 | [1] | BLOCK | |
| 11 | 1B-9575 | [1] | BOLT (5/16-18X1.56-IN) | |
| 12 | 9M-1974 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| 13 | 6N-0012 | [1] | HARNESS AS | |
| 14 | 9M-8406 | [1] | CLIP | |
| | 0S-1617 | [1] | BOLT (5/16-18X0.75-IN) | |
| 15 | 9G-6079 CY | [1] | ALTERNATOR GP-CHARGING | |
| 16 | 3H-5368 | [4] | BOLT (7/16-14X1.375-IN) | |
| 17 | 9N-2173 | [1] | BRACKET | |
| 18 | 1P-3890 | [1] | SPACER | |
| 19 | 8S-9191 | [1] | BOLT (3/8-16X4-IN) | |
| | 1D-4717 | [1] | NUT (3/8-16-THD) | |
| 20 | 5M-2894 | [5] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 21 | 3B-6552 CJ | [1] | ELBOW-PIPE | |
| 22 | 4M-5317 | [1] | BUSHING-REDUCER | |
| 23 | 2N-7744 J | [1] | SWITCH AS (HOUR-METER) | |
| 24 | 9L-7311 | [1] | PULLEY-ALTERNATOR | |
| 25 | 9N-5024 | [1] | SUPPORT | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | J | | USE WITHOUT SAFETY PANEL |
| | R | | REMFG PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
|
|
9L-6130 9L6130 V-belt Set Excavator Engine Parts Fitting For Engine 3208 Images
|
