• 7Y0639 7Y-0639 Sun Gear Excavator Swing Gear Fitting For 325 L 325C 328D LCR 330 330 FM L

• Specification

Application	C A T excavator swing gear
Name	Sun Gear
Parts No	7Y0639 7Y-0639
Model	325 L 325C 328D LCR 330 330 FM L 330 L 330B 330B L 330C 330C FM 330C L 330C MH 330D 330D L 330D LN 330D MH 336D 336D L 336D LN
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

EXCAVATOR 325 L 325C 328D LCR 330 330 FM L 330 L 330B 330B L 330C 330C FM 330C L 330C MH 330D 330D L 330D LN 330D MH 336D 336D L 336D LN
MOBILE HYD POWER UNIT 330D 336D L
UNDERCARRIAGE OEMS

• More gear parts supplied to C A T machine

7Y0673 GEAR-RING

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0641 GEAR-COUPLING

325 L, 330, 330 FM L, 330 L, OEMS

7Y0642 GEAR-RING

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

1107229 GEAR-RING

330B, 330B L, OEMS

1107231 GEAR-SUN

325C, 328D LCR, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

1107232 GEAR-SUN

330B, 330B L, OEMS

1107233 GEAR-PLANETARY

330B, 330B L, OEMS

7Y1504 GEAR-PLANETARY

330, 330 FM L, 330 L, 330C, 330D L, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 350, OEMS

1695560 GEAR-COUPLING

330C, 345B, 345B II, 345B II MH, 345B L, 350, OEMS

2043654 GEAR

330B L, OEMS

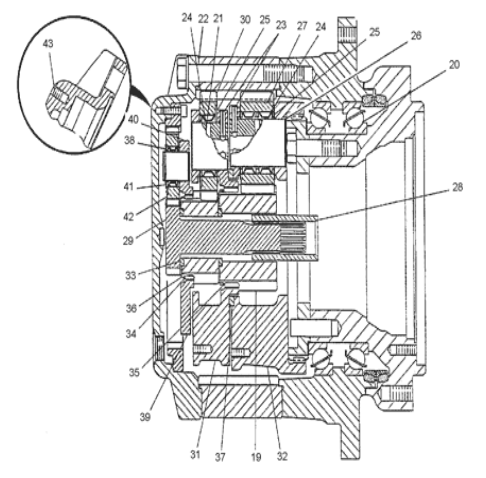

• Catalog part list

Pos.	Part No	Qty	Parts name	Comments
1	7Y-5235 M	[20]	BOLT (M24X3X190-MM)
2	8T-4167	[20]	WASHER-HARD (26X44X4-MM THK)
3	7Y-0646	[1]	COVER
4	1U-8846 B		SEALANT-GASKET
5	7Y-0642	[1]	GEAR-RING (63-TEETH)
6	2P-3628	[1]	SEAL-O-RING
7	7Y-0636	[1]	HOUSING
8	7Y-0672	[1]	HOUSING-MOTOR
9	132-6141 C	[1]	SEAL GP-DUO-CONE
10	6V-8133 M	[10]	BOLT (M24X3X80-MM)
11	114-1541	[6]	PIN-DOWEL
12	9X-6032 M	[12]	BOLT-SOCKET HEAD (M10X1.5X30-MM)
13	7Y-1050 B	[1]	SHIM (0.15-MM THK)
	7Y-1051 B	[1]	SHIM (0.3-MM THK)
	7Y-1052 B	[1]	SHIM (0.4-MM THK)
	7Y-1053 B	[1]	SHIM (0.5-MM THK)
	7Y-1054 B	[1]	SHIM (0.6-MM THK)
	7Y-1055 B	[1]	SHIM (0.7-MM THK)
	7Y-1056 B	[1]	SHIM (0.8-MM THK)
	7Y-1057 B	[1]	SHIM (1-MM THK)
	7Y-1058 B	[1]	SHIM (1.60-MM THK)
14	7Y-0641	[1]	GEAR-COUPLING (66 T)(SPLINE)
15	7Y-0673	[1]	GEAR-RING (73-TEETH)
16	7M-8485	[2]	SEAL-O-RING
17	3E-2338	[2]	PLUG-PIPE
18	094-0577 B	[1]	PLATE (7-MM THK)
	094-0578 B	[1]	PLATE (8-MM THK)
	094-0579 B	[1]	PLATE (9-MM THK)
	094-0580 B	[1]	PLATE (10-MM THK)
19	7Y-0639	[1]	GEAR-SUN (21-TEETH)
20	7Y-0637	[2]	BALL BEARING
21	7Y-0661	[3]	SHAFT-PLANETARY
22	1U-8846 B		SEALANT-GASKET
23	095-0891	[7]	PIN-SPRING
24	7Y-0664	[11]	BEARING AS-ROLLER
25	7Y-1094	[14]	WASHER (66X102X1-MM THK)
26	7Y-0662	[4]	SHAFT-PLANETARY
27	7Y-0663	[4]	GEAR-PLANETARY (20-TEETH)
28	7Y-1461	[1]	COUPLING
29	7Y-0674	[1]	GEAR-SUN (23 T)
30	7Y-0659	[3]	GEAR-PLANETARY (22-TEETH)
31	7Y-0645	[1]	CARRIER
32	7Y-0643	[1]	CARRIER
33	7Y-0595	[2]	SPACER (58X79.6X6-MM THK)
34	093-1731	[1]	RING-RETAINING
35	7Y-0667	[1]	RING-RETAINING
36	7Y-0654	[1]	GEAR-SUN (18 T)
37	7Y-0644	[1]	SPACER (163X190X8-MM THK)
38	8T-4240	[3]	RING-RETAINING
39	7Y-0731	[1]	CARRIER AS
40	094-1516	[3]	BEARING-ROLLER
41	094-0584	[6]	WASHER (40.3X72X1-MM THK)
42	7Y-0676	[3]	GEAR-PLANETARY (24-TEETH)
43	096-3216 M	[2]	SETSCREW-SOCKET
	B		USE AS REQUIRED
	C		CHANGE FROM PREVIOUS TYPE
	M		METRIC PART
