• 7861-93-1840 7861931840 Sensor Support For KOMATSU Excavators HB205 HB215 PC118MR

• ​Specification

Category	KOMATSU excavators electric parts
Name	Sensor
Parts No	7861-93-1840 7861931840
Machine Model	HB205 HB215 PC118MR PC130 PC138 PC138US PC160 PC180 PC190 PC200 PC2000 PC200LL PC210 PC220 PC220LL PC228 PC228US PC230NHD PC240 PC270 PC27MR PC290 PC300 PC300HD PC300LL PC308 PC30MR PC340 PC350 PC350HD PC350LL PC35MR PC360 PC390 PC390LL PC400 PC450 PC45MR PC490 PC550 PC55MR PC70 PC78US PC78UU PC88MR PW118MR PW148 PW160 PW180 PW200 PW220 PW98MR
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

BULLDOZERS D31EX D31PX D37EX D37PX D39EX D39PX D51EX/PX D61EX D61EXI D61PX D61PXI
DUMP TRUCKS HM300 HM400
EXCAVATORS HB205 HB215 PC118MR PC130 PC138 PC138US PC160 PC180 PC190 PC200 PC2000

PC200LL PC210 PC220 PC220LL PC228 PC228US PC230NHD PC240 PC270 PC27MR PC290 PC300

PC300HD PC300LL PC308 PC30MR PC340 PC350 PC350HD PC350LL PC35MR PC360 PC390 PC390LL

PC400 PC450 PC45MR PC490 PC550 PC55MR PC70 PC78US PC78UU PC88MR PW118MR PW148 PW160

PW180 PW200 PW220 PW98MR
WHEEL LOADERS WA270 WA320

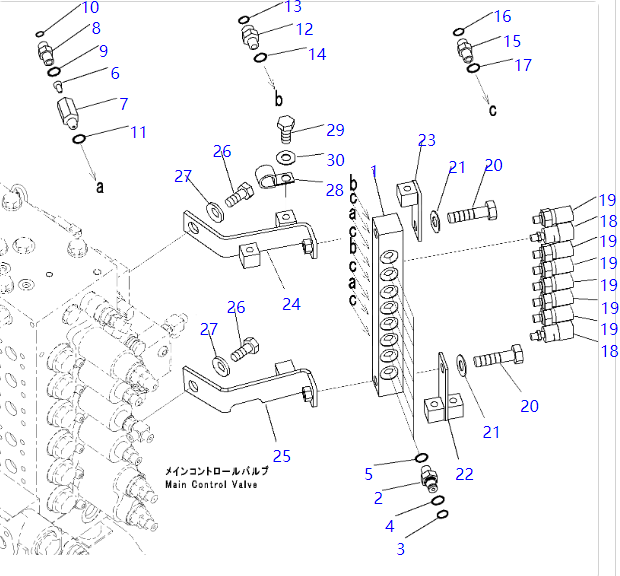

• Catalog parts list​

Pos.	Part No	Qty	Parts name	Comments
1	20Y-62-51381	[1]	Block Komatsu China
			["SN: 10001-UP"]
2	20Y-62-16630	[8]	Nipple Komatsu	0.06 kg.
			["SN: 10001-UP"]
3.	201-60-11390	[1]	O-ring Komatsu	0.01 kg.
			["SN: 10001-UP"]
4.	20Y-62-19560	[1]	O-ring Komatsu	0.01 kg.
			["SN: 10001-UP"]
5	07002-11423	[8]	O-ring Komatsu China	0.001 kg.
			["SN: 10001-UP"] analogs:["0700201423"]
	20Y-60-32300	[2]	Valve Assembly Komatsu	0.2 kg.
			["SN: 10001-UP"] |5.
6.	20Y-62-41830	[1]	Poppet Komatsu	0.03 kg.
			["SN: 10001-UP"]
7.	20Y-60-22350	[1]	Body Komatsu China
			["SN: 10001-UP", "SCC: C1"]
8.	21W-62-43930	[1]	Nipple Komatsu	0.06 kg.
			["SN: 10001-UP"]
10	02896-11008	[2]	O-ring Komatsu China	0.12 kg.
			["SN: 10001-UP"]
12	11Y-62-12520	[2]	Nipple Komatsu	0.08 kg.
			["SN: 10001-UP"]
13	02896-11009	[2]	O-ring Komatsu China	0.01 kg.
			["SN: 10001-UP"] analogs:["R0289611009", "0286911009"]
15	11Y-62-12130	[4]	Nipple Komatsu	0.05 kg.
			["SN: 10001-UP"]
18	206-06-61130	[2]	Switch Komatsu OEM	0.04 kg.
			["SN: 10001-UP"] analogs:["2060661330"]
19	7861-93-1840	[6]	Sensor Komatsu	0.06 kg.
			["SN: 10001-UP"]
20	01010-81265	[2]	Bolt Komatsu	0.074 kg.
			["SN: 10001-UP"] analogs:["0101051265"]
21	01643-31232	[2]	Washer Komatsu	0.027 kg.
			["SN: 10001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
22	20Y-62-51371NK	[1]	Bracket Komatsu China
			["SN: 10001-UP"]
23	20Y-62-51411NK	[1]	Bracket Komatsu China
			["SN: 10001-UP"]
24	20Y-62-51391NK	[1]	Bracket Komatsu China
			["SN: 10001-UP"]
25	20Y-62-51352NK	[1]	Bracket Komatsu China
			["SN: 10001-UP"]
26	01010-81635	[2]	Bolt Komatsu	0.088 kg.
			["SN: 10001-UP"] analogs:["0101061635", "801015185", "0101051635", "0101031635"]
27	01643-31645	[2]	Washer Komatsu	0.072 kg.
			["SN: 10001-UP"] analogs:["802170005", "0164301645"]
28	04434-52112	[1]	Clip Komatsu	0.03 kg.
			["SN: 10001-UP"]
29	01010-81225	[1]	Bolt Komatsu	0.074 kg.
			["SN: 10001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]

​

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
