• 266-1466 2661466 Throttle Position Sensor Wheel Loader Spare Parts For C13 980M

• Specification

Name	Throttle Position Sensor
Parts No	266-1466 2661466
Engine Model	C7 C10 C12 C13 C15
Machine Model	938G II 950G II 950H 950K 962G II
Category	Control Gp-Foot Brake
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other sensor parts fit for C A T machine

2986488 SENSOR GP-PRESSURE

12M 2, 140M 2, 160M 2, 336E, 336E H, 336E L, 336E LH, 336E LN, 349E, 349E L, 349E L VG, 349F L, 3516C, 374F L, 390F L, 568 FM LL, 621H, 627H, 735B, 740B, 824K, 825K, 826K, 834K, 836K, 906H, 907H, 908H...

2968060 SENSOR GP-PRESSURE

120K, 120K 2, 12K, 12M, 140K, 140K 2, 140M, 140M 2, 160K, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 32...

3447389 SENSOR GP-PRESSURE

120M, 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 2384C, 2484C, 308E SR, 525D, 535D, 545D, 555D, 559C, 579C, 824K, 834K, 836K, 844K, ...

3491178 SENSOR-PRESSURE

525D, 535D, 545D, 824K, 825K, 826K, 834K, 836K, 844K, 924K, 930K, 938K, 950K, 962K, 963D, 966K, 966M, 966M XE, 972K, 972M, 972M XE, 980H, 980K, 980M, 982M, 988H, 988K, 990K, 992K, 993K, 994H, CB-44B, ...

3447390 SENSOR GP-PRESSURE

311F LRR, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D2 L, 323E L, 324E, 324E L, 324E LN, 329E, 329E L, 329E LN, 330D, 330D L, 336D, 336D L, 336D2, 3...

3355321 SENSOR GP-PRESSURE

521B, 522B, 541 2, 552 2, 777G, 785D, 906H2, 907H2, 908H2, 910K, 914K, 953D, 963D, 973D, D3K XL, D4K XL, D5K LGP, D6K LGP, D6K XL, D6T, PL61

2965270 SENSOR GP-PRESSURE

120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 24M, 621H, 621K, 623H, 623K, 623K LRC, 627H, 627K, 627K LRC, 950K, 962K, 966K,...

2584521 SENSOR GP-SPEED

651E, 769D, 771D, 773D, 773E, 775E, 777D, 784B, 784C, 785B, 785C, 785D, 789B, 789C, 793B, 793C

3500664 SENSOR GP-PRESSURE

621B

4195574 SENSOR GP-PRESSURE

966M, 966M XE, 972M, 972M XE, 980M, 982M

2059873 SENSOR GP-SPEED

769C, 769D, 771C, 771D, 773B, 773D, 773E, 775B, 775D, 775E, 776C, 776D, 777D

1860131 SENSOR GP-SPEED

793C, 793D, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ, 795F AC, 795F XQ, 797, 797B, 797F

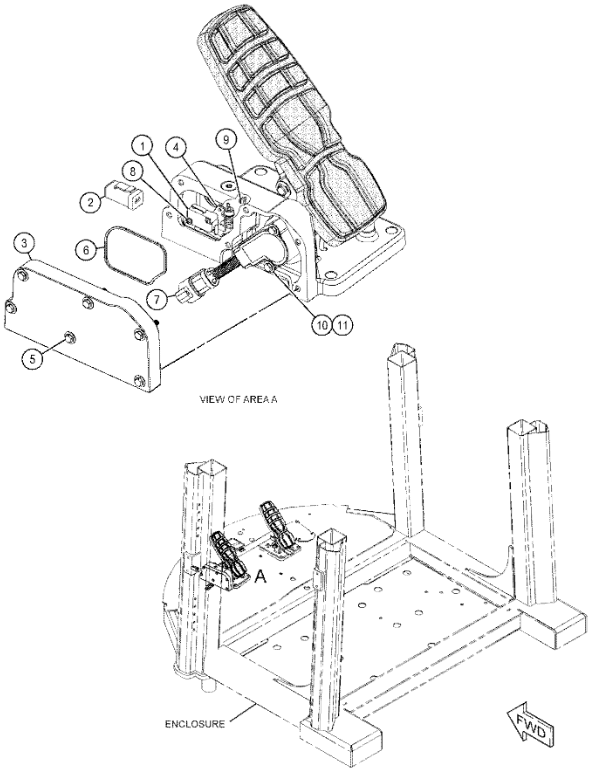

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	105-6117	[1]	SWITCH AS-LIMIT (BRAKE PEDAL)
2	146-1892	[1]	HARNESS AS-BRAKE (STOP LIGHT)
		[1]	GROMMET AS
	8C-8514	[1]	SCREW-MACHINE (8-32X0.375-IN)
	8T-8730	[2]	SOCKET-CONNECTOR (16-GA TO 18-GA)
	5P-2957	[2]	TERMINAL-BLADE (14-GA TO 16-GA)
			-OR-
	5P-5602	[2]	TERMINAL-BLADE (18-GA TO 22-GA)
	155-2270	[1]	KIT-CONNECTING PLUG (2-PIN)
			(INCLUDES PLUG AS & WEDGE)
3	200-2217	[1]	COVER
4	200-2218	[1]	BRACKET AS-ADJUSTABLE SWITCH
5	200-2219	[6]	BOLT (M5X0.8X25-MM)
6	200-2220	[1]	SEAL
7	266-1466 Y	[1]	SENSOR GP-POSITION (ROTARY)
8	125-3295 M	[2]	SCREW-PAN HEAD (M2.5X0.45X12-MM)
9	8T-2899 M	[2]	SCREW-MACHINE (M2.5X0.45X6-MM)
10	6V-2313 M	[2]	BOLT (M5X0.8X30-MM)
11	211-9336	[2]	WASHER (5.4X9.8X0.7-MM THK)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
