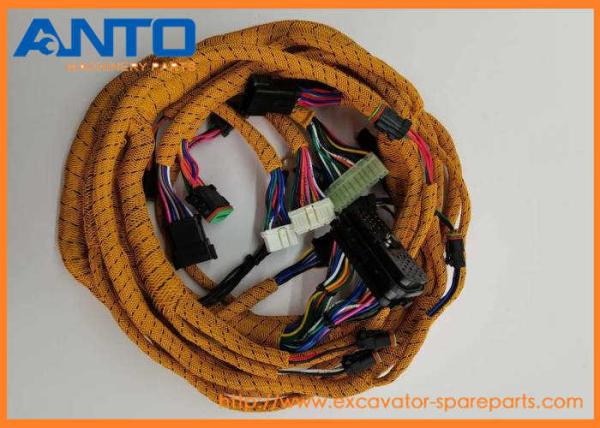

186-4605 1864605 Excavator Main Wiring Harness for E320C AS-CHASSIS

Brand Name : OEM

Model Number : 186-4605

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : electrical spare parts

Model : E320C

Parts no. : 186-4605

Parts name : excavator main wire harness

Warranty : 6/12 months

Package : Standard Box package

Contact Now

186-4605 1864605 Main Wiring Harness Used For E320C Caterpillar Excavator Parts

Specification

Excavator spare parts name	Main wiring harness
Equipment Model	E320C
Parts Category	excavator electrical spare parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

EXCAVATORS CAT E320C

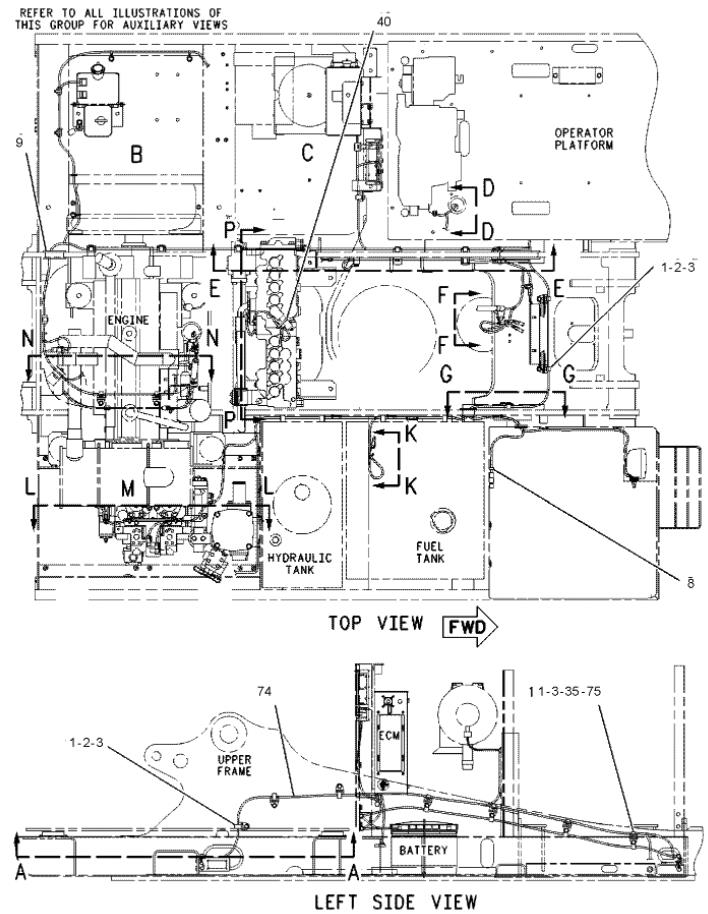

parts diagram

Pos.	Part No	Qty	Parts name	Comments
1	111-4837	[23]	CLIP
2	8T-4137 M	[45]	BOLT (M10X1.5X20-MM)
3	8T-4121	[86]	WASHER-HARD (11X21X2.5-MM THK)
4	9M-8406	[5]	CLIP (LOOP)
6	111-4838	[6]	CLIP
7	111-4839	[6]	STRAP
8	3S-2093	[24]	STRAP-CABLE
9	7Y-8165	[1]	GROMMET
10	8T-4191 M	[16]	BOLT (M10X1.5X16-MM)
11	4D-8123	[2]	CLIP (LOOP)
12	6D-4244	[2]	CLIP (LOOP)
13	7Y-8167	[1]	GROMMET (50-MM ID)
16	3T-5760	[2]	BATTERY GP (12-VOLT, 750-CCA)
17	6W-6005	[1]	HOLD-DOWN-BATTERY
18	5I-8270	[1]	COVER-BATTERY
19	163-6775	[1]	CABLE AS
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0747 E		CABLE (00-GA, BLACK)(64CM)
	7N-5274	[1]	COVER AS-TERMINAL (BLACK)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-8909	[1]	COVER-TERMINAL (BLACK)
	3S-6050	[1]	TERMINAL AS-BATTERY (NEGATIVE)(397CM)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
20	163-6774	[1]	CABLE AS
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0761 E		CABLE (00-GA, RED)(397CM)
	8N-0869	[1]	COVER-TERMINAL (RED)
	8N-1725	[1]	COVER AS-TERMINAL (RED)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	3S-6049	[1]	TERMINAL AS-BATTERY (POSITIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
21	170-6929	[1]	CABLE AS
	5P-0761 E		CABLE (00-GA, RED)(31CM)
	9G-0002	[1]	COVER AS-TERMINAL (RED)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-0005	[1]	COVER AS-TERMINAL (BLACK)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5918	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	8T-9756	[1]	TERMINAL AS-BATTERY (POSITIVE)
22	6K-8178	[6]	CLIP (LOOP)
23	163-6621 Y	[1]	PANEL GP-CIRCUIT BREAKER
24	8T-4136 M	[6]	BOLT (M10X1.5X25-MM)
27	167-3583	[1]	STRAP AS-GROUND
28	7X-2621 M	[10]	BOLT (M10X1.5X12-MM)
29	116-0118	[22]	CLIP
30	111-4836	[17]	CLIP
31	163-6749	[1]	HARNESS AS-PLATFORM
	102-8802	[4]	KIT-RECEPTACLE (2-PIN)
	102-8804	[2]	KIT-RECEPTACLE (4-PIN)
	102-8801	[3]	KIT-RECEPTACLE (12-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
32	7G-1060	[1]	STRAP AS-GROUND
33	8M-2773	[2]	CLIP (LOOP)
34	033-8248	[2]	CLIP (LOOP)
35	8T-4195 M	[5]	BOLT (M10X1.5X30-MM)
36	163-6786	[1]	BRACKET
37	6V-5683 M	[4]	BOLT (M6X1X16-MM)
38	9X-8256	[6]	WASHER (6.6X12X2-MM THK)
39	163-6779	[1]	BRACKET AS
40	7K-1181	[7]	STRAP-CABLE
41	5C-7261 M	[1]	NUT (M8X1.25-THD)
42	8T-4226	[1]	WASHER-PLATED (10.5X45X3-MM THK)
43	8T-4133 M	[2]	NUT (M10X1.5-THD)
44	5I-8304	[1]	ROD
46	116-0068	[1]	BRACKET
47	163-6750	[1]	HARNESS AS-ALARM (HORN)
	155-2270	[1]	KIT-CONNECTING PLUG (2-PIN)
			(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
48	124-0986	[1]	GROMMET
49	8T-4185 M	[1]	BOLT (M10X1.5X50-MM)
50	2G-8767	[2]	WASHER (10.5X60X3-MM THK)
51	6G-2256	[2]	CLAMP
52	6G-2263	[2]	SPACER (10.5X19X28.5-MM THK)
53	132-1806	[1]	STRAP AS-GROUND
55	170-9336	[1]	BRACKET AS
	7T-1099	[2]	LINK
56	7I-2673	[8]	STRAP-CABLE
57	7Y-5226 M	[1]	NUT (M5X0.8-THD)
58	8T-0328	[2]	WASHER-HARD (5.5X10X1-MM THK)
59	7X-2533 M	[1]	BOLT (M6X1X35-MM)
60	4J-9448	[1]	LUG
61	8J-1256	[1]	CLIP (LOOP)
62	7X-0818 M	[3]	BOLT (M8X1.25X45-MM)
63	5P-4116	[5]	WASHER-HARD (8.8X20.5X2-MM THK)
64	7Y-1924	[3]	SPACER (9X19X23-MM THK)
65	8T-6912 M	[2]	BOLT (M8X1.25X50-MM)
66	085-7329	[2]	SPACER (9X19X30-MM THK)
67	8T-0286 M	[1]	BOLT (M5X0.8X8-MM)
68	7X-2619 M	[1]	BOLT (M6X1X10-MM)
69	102-7880	[1]	BRACKET
70	8T-4182 M	[1]	BOLT (M10X1.5X45-MM)
71	8T-5005 M	[2]	BOLT (M10X1.5X70-MM)
72	4I-7889	[3]	SPACER (11X25X45-MM THK)
73	3V-4791	[1]	GROMMET
74	186-4605	[1]	HARNESS AS-CHASSIS
	102-8802	[6]	KIT-RECEPTACLE (2-PIN)
	102-8803	[2]	KIT-RECEPTACLE (3-PIN)
	102-8805	[1]	KIT-RECEPTACLE (6-PIN)
	102-8801	[1]	KIT-RECEPTACLE (12-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
	155-2265	[1]	KIT-CONNECTING PLUG (8-PIN)
	155-2260	[4]	KIT-CONNECTING PLUG (3-PIN)
	155-2270	[16]	KIT-CONNECTING PLUG (2-PIN)
	155-2274	[2]	KIT-CONNECTING PLUG (6-PIN)
	155-2270	[2]	KIT-CONNECTING PLUG (2-PIN)
			(EACH PLUG KIT INCLUDES PLUG AS AND WEDGE & INTERFACE SEAL)
75	4K-8864	[4]	CLIP (LOOP)
76	8T-4172 M	[1]	BOLT (M10X1.5X80-MM)
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
