- 230-6279 2306279 C-9 Engine Wring Harness for E330C Excavator parts
| Excavator spare parts name | Engine wiring harness |
| Equipment Model | E330C |
| Parts Category | Excavator electrical spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
ENGINES C-9
EXCAVATORS E330C

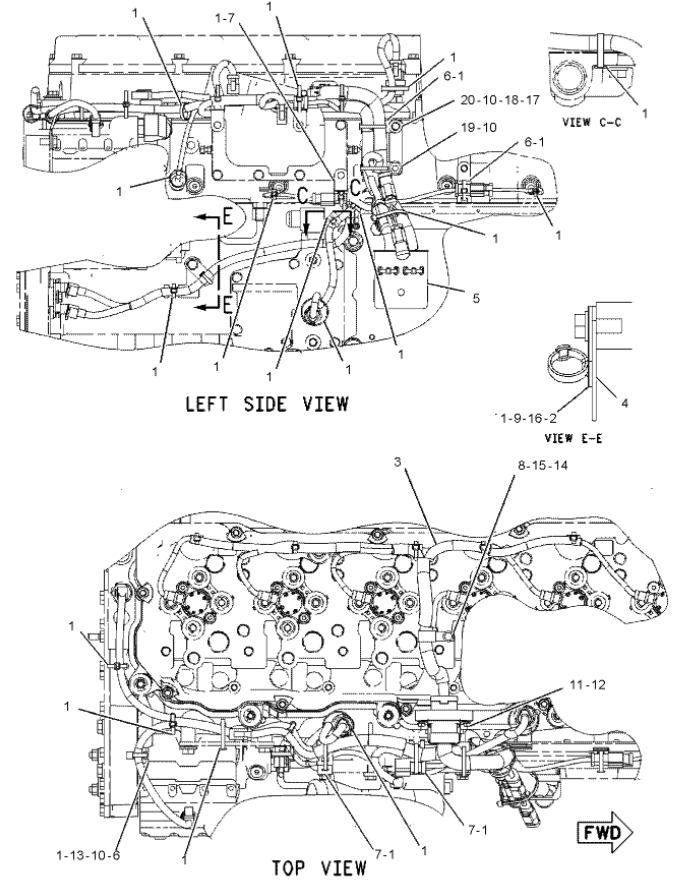

| Pos. | Part No | Qty | Parts name | Comments |
| | 6I-4347 | [4] | BOOT (4-PIN) | |
| | 126-1774 | [1] | COVER-CONNECTOR | |
| | 214-7170 L | [1] | KIT-REPAIR (ELECTRICAL CONNECTORS) | |
| | | | (FOR EXTREME COLD CLIMATES) |
| | 155-2260 | [3] | KIT-CONNECTING PLUG (3-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [8] | PLUG-SEAL | |
| | 102-8803 | [2] | KIT-RECEPTACLE (3-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 194-5226 | [7] | WIRE AS (16-GA) | |
| | | | -OR- |
| | 194-5227 | [7] | WIRE AS (14-GA) | |
| | 125-7874 E | | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | |
| | 9X-3401 | [10] | PIN-CONNECTOR (16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [10] | PIN-CONNECTOR (14-GA TO 16-GA) | |
| | 100-3320 | [1] | PLUG AS-CONNECTOR (2-PIN) | |
| | 111-2416 | [1] | PLUG AS-CONNECTOR (2-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 126-5011 | [1] | SEAL-CONNECTOR | |
| | 155-2270 | [4] | KIT-CONNECTING PLUG (2-PIN) | |
| | 155-2260 | [6] | KIT-CONNECTING PLUG (3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 160-7690 | [1] | PLUG AS-CONNECTOR (70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 172-6062 | [1] | PLUG AS-CONNECTOR (18-PIN) | |
| | 8T-8737 | [35] | PLUG-SEAL | |
| | 102-8802 | [2] | KIT-RECEPTACLE (2-PIN) | |
| | 102-8803 | [4] | KIT-RECEPTACLE (3-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 194-5226 | [85] | WIRE AS (16-GA) | |
| | | | -OR- |
| | 194-5227 | [85] | WIRE AS (14-GA) | |
| | 305-5362 | [4] | TERMINAL AS (18-GA) | |
| | 3S-2093 | [3] | STRAP-CABLE | |
| | 119-3662 E | | TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM) | |
| | 125-7875 E | | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | L | | KIT MARKED "L" PROVIDES OIL GRADE PLUGS FOR 0W20, 10W30, 15W40 OIL GRADES |
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
|
|
