306-8678 3068678 Main Chassic Wire Harness for 312D 313D Excavator Parts

  • 1
  • 2

Brand Name : OEM

Model Number : 306-8678

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Electrical spare parts

Model : 312D 313D

Parts no. : 306-8678

Parts name : Main Wire Harness

Warranty : 3/6/12 months

Package : Standard Box package

Contact Now

  • 306-8678 3068678 Main Chassic Wire Harness for 312D 313D Excavator Parts


  • Specification

Excavator spare parts name Main wiring harness
Equipment Model 312D 313D
Parts Category Excavator electrical spare parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days



  • Application

EXCAVATORS 312D 313D

Pos. Part No Qty Parts name Comments
1. 3S-2093 [36] STRAP-CABLE
2. 3T-5760 [2] BATTERY GP (12-VOLT, 750-CCA)
(EACH INCLUDES)
123-1373 [6] CAP AS-FILLER (7/8-9-THD)
3. 4I-5399 [2] GROMMET
4. 4I-5479 [2] CLAMP
5. 4I-5480 [3] WASHER (11X72X3-MM THK)
6. 5I-4365 [1] GROMMET
7. 5I-8270 [1] COVER-BATTERY
8. 5I-9368 [1] SPACER (9.24X13.72X20.5-MM THK)
9. 6W-6005 [1] HOLD-DOWN-BATTERY
10. 7I-2673 [1] STRAP-CABLE
11. 7K-1181 [25] STRAP-CABLE
12. 7Y-5456 [2] GROMMET
13. 093-2068 [1] GROMMET
14. 111-4836 [13] CLIP
15. 111-4837 [7] CLIP
16. 111-4838 [12] CLIP
17. 111-4839 [12] STRAP
18. 116-0118 [11] CLIP
19. 121-1076 [1] GROMMET
20. 132-1805 [2] STRAP AS-GROUND
21. 170-6929 [1] CABLE AS
5P-0761 E CABLE (00-GA, RED)(31-CM)
9G-0002 [1] COVER AS-TERMINAL (RED)
9G-0005 [1] COVER AS-TERMINAL (BLACK)
(EACH TERMINAL COVER INCLUDES)
8L-8413 [1] STRAP-CABLE (WHITE)
8C-5918 [1] TERMINAL AS-BATTERY (NEGATIVE)
8T-9756 [1] TERMINAL AS-BATTERY (POSITIVE)
22. 238-2501 [1] KNOB
23. 238-2528 [1] ROD
24. 259-5303 [1] BRACKET AS
25. 267-7683 [1] BRACKET AS
26. 267-7689 [1] BRACKET AS
27. 306-8678 [1] HARNESS AS-CHASSIS
28. 275-7131 [1] CABLE AS
1S-7252 [1] TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
5P-0761 E CABLE (00-GA, RED)(279-CM)
8N-0869 [1] COVER-TERMINAL (RED)
8N-1725 [1] COVER AS-TERMINAL (RED)
8L-8413 [1] STRAP-CABLE (WHITE)
3S-6049 TERMINAL AS-BATTERY (POSITIVE)
1M-6119 [1] BOLT (5/16-18X1.375-IN)
1M-6120 [1] NUT (5/16-18-THD)
29. 275-7132 [1] CABLE AS
1S-7252 [1] TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
5P-0747 E CABLE (00-GA, BLACK)(101-CM)
7N-5274 [1] COVER AS-TERMINAL (BLACK)
8L-8413 [1] STRAP-CABLE (WHITE)
9G-8909 [1] COVER-TERMINAL (BLACK)
3S-6050 [1] TERMINAL AS-BATTERY (NEGATIVE)
1M-6119 [1] BOLT (5/16-18X1.375-IN)
1M-6120 [1] NUT (5/16-18-THD)
30. 283-2662 [1] BRACKET AS
31. 291-7760 [1] BRACKET AS
32. 299-2901 [1] GROMMET
33. 306-8531 [1] BRACKET AS
34. 091-9035 [2] SPACER (11X25X20-MM THK)
35. 132-5789 [2] CLIP
36. 1R-6072 [1] GROMMET
37. 4K-8864 [4] CLIP
38. 4P-7581 [10] CLIP (LADDER)
39. 4P-8134 [1] CLIP (LADDER)
40. 5C-7261 M [1] NUT (M8X1.25-THD)
41. 5C-7883 M [4] BOLT-SOCKET HEAD (M6X1X16-MM)
42. 6D-4246 [4] CLIP (LOOP)
43. 6G-2263 [3] SPACER (10.5X19X28.5-MM THK)
44. 7X-2619 M [1] BOLT (M6X1X10-MM)
45. 7X-2621 M [5] BOLT (M10X1.5X12-MM)
46. 7Y-5226 M [1] NUT (M5X0.8-THD)
47. 8C-8451 M [1] BOLT (M6X1X40-MM)
48. 8J-1256 [1] CLIP
50. 8T-0328 [1] WASHER-HARD (5.5X10X1-MM THK)
51. 8T-4121 [68] WASHER-HARD (11X21X2.5-MM THK)
52. 8T-4133 M [1] NUT (M10X1.5-THD)
53. 8T-4136 M [5] BOLT (M10X1.5X25-MM)
54. 8T-4137 M [51] BOLT (M10X1.5X20-MM)
55. 8T-4179 M [2] BOLT (M12X1.75X20-MM)
56. 8T-4185 M [3] BOLT (M10X1.5X50-MM)
57. 8T-4186 M [2] BOLT (M10X1.5X40-MM)
58. 8T-4191 M [3] BOLT (M10X1.5X16-MM)
59. 8T-4223 [2] WASHER-HARD (13.5X25.5X3-MM THK)
61. 8T-4226 [1] WASHER-PLATED (10.5X45X3-MM THK)
62. 9X-8256 [6] WASHER (6.6X12X2-MM THK)
63. 107-1678 E GUARD (9-CM)
64. 8T-5005 M [1] BOLT (M10X1.5X70-MM)
65. 4I-7889 [1] SPACER (11X25X45-MM THK)
66. 4P-7428 [1] CLIP
67. 135-8573 B [1] BOLT AS
68. 102-1173 E GUARD (8-CM)
B USE AS REQUIRED
E ORDER BY THE CENTIMETER
M METRIC PART

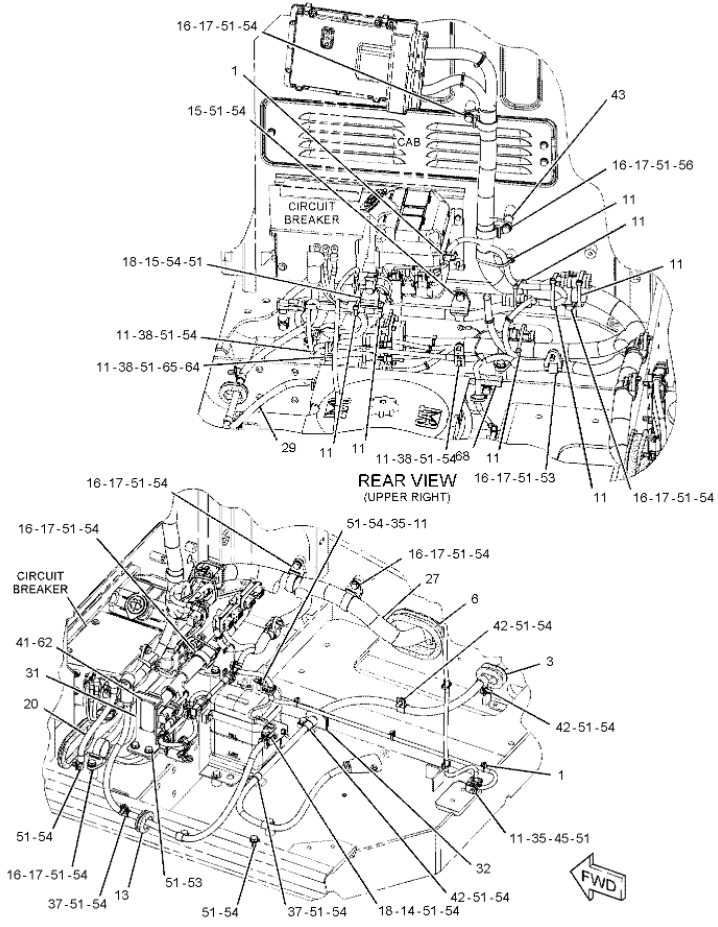

  • parts diagram

306-8678 3068678 Main Chassic Wire Harness for 312D 313D Excavator Parts



  • Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.

  • Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
