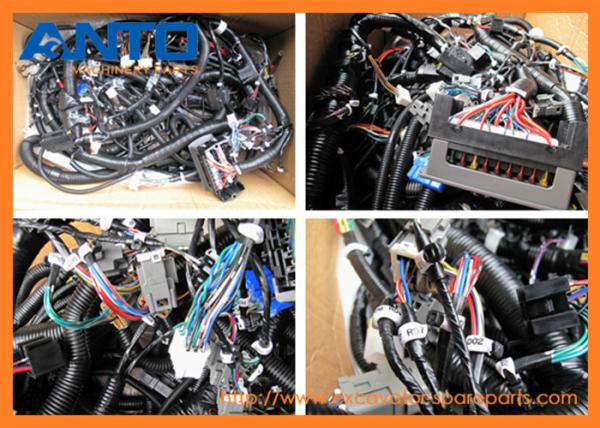

20Y-06-42411 PC200-8 PC220-8 PC240-8 Main Wiring Harness For Komatsu Excavator Parts

Product Categories
Guangzhou Anto Machinery Parts Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

20Y-06-42411 PC200-8 PC220-8 PC240-8 Main Wiring Harness For Komatsu Excavator Parts

Brand Name : OEM

Model Number : 20Y-06-42411

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, D/A, T/T, L/C, Western Union, MoneyGram

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Komatsu electrical spare parts

Model : PC200-8 PC220-8 PC240-8

Parts no. : 20Y-06-42411

Parts name222-5917 : excavator main wire harness

Warranty : 3/6/12 months

Package : Standard Box package

Contact Now

  • 20Y-06-42411 PC200-8 PC220-8 PC240-8 Main Wiring Harness Used For Komatsu Excavator Parts


  • Specification

Excavator spare parts name Komatsu main wire harness
Equipment Model PC200-8 PC220-8 PC240-8
Parts Category Komatsu excavator electrical spare parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days



  • Application

EXCAVATORS PC200 PC220 PC270 Komatsu

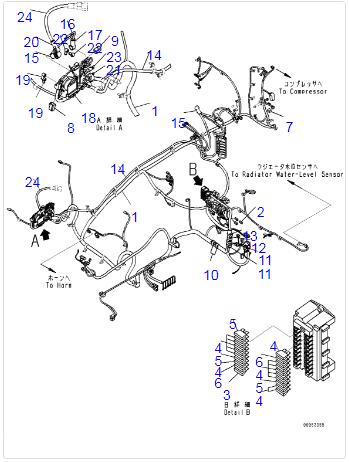

  • parts diagram

20Y-06-42411 PC200-8 PC220-8 PC240-8 Main Wiring Harness For Komatsu Excavator Parts

Pos. Part No Qty Parts name Comments
1 20Y-06-42721 [1] Wiring Harness Komatsu 0.000 kg.
["SN: 351244-UP"]
1 20Y-06-42720 [1] Wiring Harness Komatsu 0.000 kg.
["SN: 350094-351243"] ancatalogs:["20Y0642721"]
1 20Y-06-42411 [1] Wiring Harness Komatsu 11.5 kg.
["SN: 350001-350093"]
2. 08020-20000 [2] Diode Komatsu 0.01 kg.
["SN: 350001-UP"]
3. 08041-00500 [1] Fuse, 5Amp. Komatsu 0.002 kg.
["SN: 350001-UP"]
4. 08041-01000 [14] Fuse, 10Amp. Komatsu 0.001 kg.
["SN: 350001-UP"] ancatalogs:["2830616190"]
5. 08041-02000 [3] Fuse, 20Amp. Komatsu 0.001 kg.
["SN: 350001-UP"] ancatalogs:["22W0613160M", "22W0613160"]
6. 08041-03000 [2] Fuse, 30Amp. Komatsu 0.01 kg.
["SN: 350001-UP"]
7. 19M-06-31720 [1] Resistor Komatsu 0.02 kg.
["SN: 350001-UP"]
8. 20Y-06-31660 [1] Fusible Link, 30Amp. Komatsu 0.2 kg.
["SN: 350001-UP"]
9. 22U-06-11270 [1] Fusible Link, 65Amp. Komatsu 0.01 kg.
["SN: 350001-UP"]
10. HM6400-0012 [2] F-Connector, Black Komatsu China
["SN: 350001-UP"]
10. HM6409-0071 [2] M-Connector, Black Komatsu China
["SN: 350001-UP"]
11. HM6400-0013 [2] F-Connector, Green Komatsu China
["SN: 350001-UP"]
11. HM6409-0072 [2] M-Connector, Green Komatsu China
["SN: 350001-UP"]
12. HM6440-0129 [1] F-Connector, Pink Komatsu China
["SN: 350001-UP"]
12. HM6440-0128 [1] M-Connector, Pink Komatsu China
["SN: 350001-UP"]
13. HM6400-0016 [1] F-Connector, Orange Komatsu China
["SN: 350001-UP"]
13. HM6409-0075 [1] M-Connector, Orange Komatsu China
["SN: 350001-UP"]
14 20Y-06-41283 [1] Cable Komatsu 2.13 kg.
["SN: 350001-UP"]
15 08038-00035 [1] Cap, Terminal Komatsu 0.02 kg.
["SN: 350001-UP"]
16 20Y-06-22872 [1] Cable Komatsu 0.175 kg.
["SN: 350001-UP"]
17 08038-06031 [1] Cap Komatsu 0.013 kg.
["SN: 350001-UP"]
18 08088-30000 [1] Switch, Battery Relay Komatsu OEM 0.72 kg.
["SN: 350001-UP"] ancatalogs:["17A0611361", "4210611930"]
19 08038-00519 [2] Cap, Terminal Komatsu 0.005 kg.
["SN: 350001-UP"]
21 600-815-2170 [1] Switch, Heater Komatsu OEM 0.282 kg.
["SN: 350001-UP"]
23 600-815-8941 [1] Relay Komatsu OEM 0.35 kg.
["SN: 350001-UP"] ancatalogs:["2030659321", "6008158940"]
24 08028-CC065 [1] Cable, Battery Komatsu 0.5 kg.
["SN: 350001-UP"]

  • Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.

  • Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
