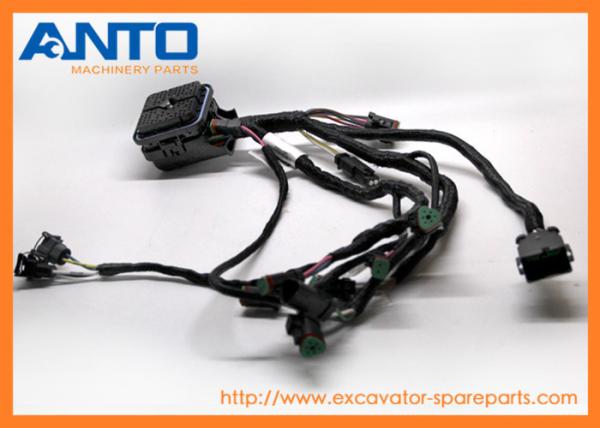

329D Excavator Electrical Parts 1982713 C7 Engine Wiring Harness

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : C7

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, D/A, T/T, L/C, Western Union, MoneyGram

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Excavator Engine spare parts

Machine model : 324D 329D 325D

Model : C7

Part NO. : 198-2713

Parts Name : excavator engine wire harness

Package : Standard Box package

Contact Now

  • 198-2713 C7 Engine Wiring Harness Applied To 324D 325D 329D Excavator Parts

Excavator spare parts name ENGINE WIRE HARNESS
Equipment Model C7
Parts Category excavator ENGINE spare parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days

The Harness could be applied to below models:

120K . 12K . 140G . 140K . 140K 2 . 140M . 160K . 324D . 324D FM . 324D FM LL . 324D L . 324D LN . 325D . 325D FM . 325D FM LL . 325D L . 325D MH . 328D LCR . 329D . 329D L . 329D LN . 525C . 535C . 545C . 573 . 584 . 815B . 950H . 962H . AP-1055D . AP-755 . BG-2455D . BG-260D . C7 . IT62H . M325D L MH . M325D MH . PM-102 .

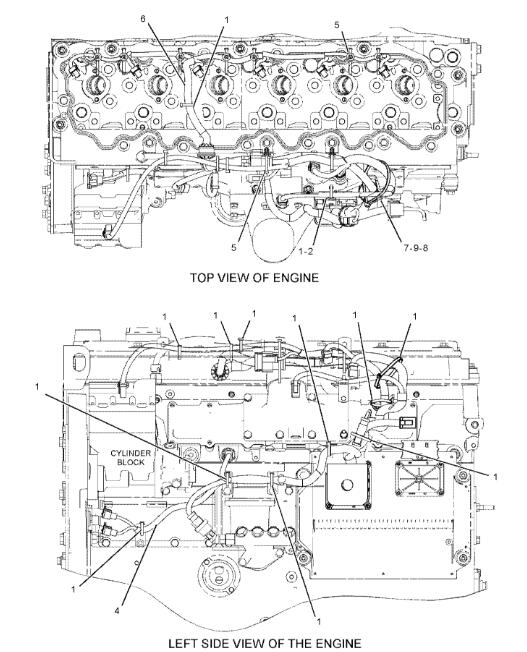

parts diagram

1.3S-2093[12] -
STRAP-CABLE
2.4P-5918[1] -
CLIP .
4.198-2713[1] -
HARNESS AS-ENGINE (ELECTRONIC CONTROL MODULE)
305-5362[4] -
TERMINAL AS (18-GA) .
180-9340[60] -
SOCKET-CONNECTOR (14-GA TO 18-GA)
9X-3401[15] -
PIN-CONNECTOR (16-GA TO 18-GA)

-OR-
126-1767[15] -
PIN-CONNECTOR (14-GA TO 16-GA)
8T-8737[77] -
PLUG-SEAL
119-3662 E-
TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM) .
125-7874 E-
TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
125-7875 E-
TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) .
264-5732[1] -
PLUG AS-CONNECTOR (120-PIN)
211-6807[1] -
COVER-CONNECTOR .
155-2270[5] -
KIT-CONNECTING PLUG (2-PIN)
155-2260[3] -
KIT-CONNECTING PLUG (3-PIN)
155-2265[1] -
KIT-CONNECTING PLUG (8-PIN)

(EACH PLUG KIT INCLUDES PLUG AS, & WEDGE)
102-8802[1] -
KIT-RECEPTACLE (2-PIN)
102-8803[1] -
KIT-RECEPTACLE (3-PIN)
102-8801[1] -
KIT-RECEPTACLE (12-PIN)

(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
111-2416[1] -
PLUG AS-CONNECTOR (2-PIN) .
100-3320[1] -
PLUG AS-CONNECTOR (2-PIN)
5.206-1345[9] -
STRAP-CABLE .
6.222-5917[1] -
HARNESS AS-ENGINE (FUEL INJECTION)
6N-7523[1] -
WASHER (6.48X11.9X1.57-MM THK) .
135-5975[1] -
GROMMET-WIRING .
155-2255[1] -
KIT-CONNECTING PLUG (12-PIN)

(INCLUDES PLUG AS & WEDGE)
7.4P-8134[1] -
CLIP
8.6V-2317 M[1] -
BOLT (M8X1.25X30-MM)
9.9M-1974[1] -
WASHER-HARD (8.8X16X2-MM THK)
